State Design Patterns

These patterns enable features of UML statecharts (heavyweight, unoptimized code) in QP (lightweight, optimized code).

• Ultimate Hook
• Reminder
• Deferred Event

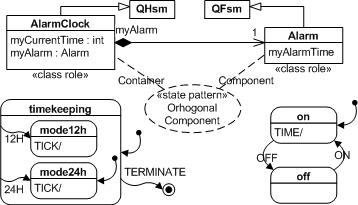

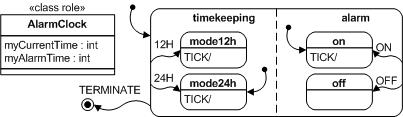

• Orthogonal Component

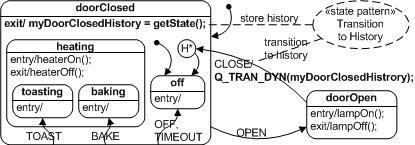

• Transition to History

We discuss each design pattern, giving the customary points for each pattern: (1)The designer Intent for the pattern, (2) a statement of the Problem the pattern is indended to solve, (3) a description of the Solution guided by the pattern, (4) Sample Code for a solution of an archetypical case, and (5) a discussion of Consequences of use of the pattern.

Ultimate Hook

Intent Provide common facilities and policies for handling events, but allow clients to override and specialize every aspect of behavior Problem Provide overridable policy consistency Provide default behavior, overridable only when client chooses Provide a common look and feel in system-level software that the client applications can use easily as the default Clients must be able to override every aspect of the default behavior easily if they so choose

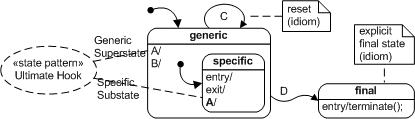

Undock Ultimate Hook Statechart

Solution

• Generally, apply concept of programming-by-difference
• Specifically, use behavioral inheritance
• Composite state defines default behavior and provides a "default behavior outer shell" for nesting client substates
• Client substates can override any default behavior
• Any events not handled by the client substates is handled by the default behavior of the composite state.

Sample Code 1

//...................................................................
enum UltimateHookSignals
{
  A_SIG = Q_USER_SIG, B_SIG, C_SIG, D_SIG
};
//...................................................................
class UltimateHook : public QHsm
// define "default" behavior framework
{
  protected:
    void initial(QEvent const *e);
    QSTATE generic(QEvent const *e);
      QSTATE specific(QEvent const *e);
    QSTATE final(QEvent const *e);
  public:
    UltimateHook() : QHsm((QPseudoState)initial) {}
};
//...................................................................
void UltimateHook::initial(QEvent const *)
{
  Q_INIT(&UltimateHook::generic);
}
//...................................................................
QSTATE UltimateHook::final(QEvent const *e)
{
  switch (e->sig)
  {
    case Q_ENTRY_SIG:
    exit(0);
    return 0;
  }
  return (QSTATE)&UltimateHook::top;
}
//...................................................................
QSTATE UltimateHook::generic(QEvent const *e)
{
  switch (e->sig)
  {
    case Q_INIT_SIG:
      printf("generic:init;");
      Q_INIT(&UltimateHook::specific);
      return 0;
    case A_SIG:
      printf("generic:A;");
      return 0;
    case B_SIG:
      printf("generic:B;");
      return 0;
    case C_SIG:
      printf("generic:C(reset);");
      Q_TRAN(&UltimateHook::generic);
      return 0;
    case D_SIG:
      Q_TRAN(&UltimateHook::final);
      return 0;
  }
  return (QSTATE)&UltimateHook::top;
}
//...................................................................
// define "specific" behavior - left to client program
QSTATE UltimateHook::specific(QEvent const *e)
{
  switch (e->sig)
  {
    case Q_ENTRY_SIG:
      printf("specific:entry;");
      return 0;
    case Q_EXIT_SIG:
      printf("specific:exit;");
      return 0;
    case A_SIG:
      printf("specific:A;");
      return 0;
  }
  return (QSTATE)&UltimateHook::generic;
}
//...................................................................

Sample Code 2

//...................................................................
public class HookFrame extends JFrame
{
  public HookFrame()
  {
    super("Hook Example");
    setDefaultCloseOperation(JFrame.DO_NOTHING_ON_CLOSE);
    setSize(300,300);
  }

  public static void main(String[] args)
  {
    HookFrame frame = new HookFrame();
    frame.setVisible(true);
  }
}
//...................................................................

Sample Code 3

//...................................................................
LRESULT CALLBACK WndMainProc (HWND hwnd, UINT message, WPARAM wParam, LPARAM lParam)
{
  switch (message)
  {
    case WM_GRAPHNOTIFY:
      HandleGraphEvent();
      break;

    case WM_SIZE:
      ResizeVideoWindow();
      break;

    case WM_WINDOWPOSCHANGED:
      ChangePreviewState(! (IsIconic(hwnd)));
      break;

    case WM_CLOSE:
      // Hide the main window while the graph is destroyed
      ShowWindow(ghApp, SW_HIDE);
      CloseInterfaces();  // Stop capturing and release interfaces
      break;

    case WM_DESTROY:
      PostQuitMessage(0);
      return 0;
  }

  // Pass this message to the video window for notification of system changes
  if (g_pVW)
    g_pVW->NotifyOwnerMessage((LONG_PTR) hwnd, message, wParam, lParam);

  return DefWindowProc (hwnd , message, wParam, lParam);
}
//...................................................................

Consequences

• The specific substate needs to know only those events it overrides
• New events can be added easily to the top-level generic superstate without affecting the specific substate
• Removing or changing the semantics of events that clients already use is difficult
• Propagating every event through many levels of nesting can be expensive

Reminder

Intent Make statechart topology more flexible by inventing event and posting to self Problem Loosely related functions are often strongly coupled by a common event Polling for data, then processing the data Long sequence of events run-to-completion (RTC)

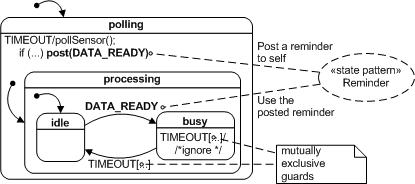

Undock Reminder Statechart

Solution

• Decouple by inventing an event and posting to self

Examples

• Polling for data, then processing (code)
• Network connection
• Listen for an incoming network connection
• When connection is attempted, perform processing to create the connection
• Message handling
• Series of messages decoded differently
• One state does nothing but listen for incoming messages and determines which method to decode by
• Appropriate event is posted to self, transitioning to individual decode states
• Breakup of long RTC steps
• Break one RTC into two or more
• Post event to self to initiate next step

Sample Code

//...................................................................
enum SensorSignals
{
  DATA_READY = Q_USER_SIG, TERMINATE
};
//...................................................................
class Sensor : public QHsm
{
public:
  Sensor() : QHsm((QPseudoState)initial) {}
private:
  void initial(QEvent const *e);
  QSTATE polling(QEvent const *e);
    QSTATE processing(QEvent const *e);
      QSTATE idle(QEvent const *e);
      QSTATE busy(QEvent const *e);
  QSTATE final(QEvent const *e);
private:
  int myPollCtr;
  int myProcCtr;
  BOOL isHandled;       // flag indicates if last event was handled
  HWND myHwnd;          // the main window handle
  friend BOOL CALLBACK
    reminderDlg(HWND hwnd, UINT iEvt, WPARAM wParam, LPARAM lParam);
};
//...................................................................
static Sensor app;
static HINSTANCE inst;          // this instance
static HWND mainHwnd;           // the main window
static char appName[] = "Sensor";
//...................................................................
void Sensor::initial(QEvent const *)
{
  SendMessage(myHwnd, WM_SETICON, (WPARAM)TRUE,
              (LPARAM)LoadIcon(inst, MAKEINTRESOURCE(IDI_QP)));
  myPollCtr = 0;
  myProcCtr = 0;
  Q_INIT(&Sensor::polling);
}
//...................................................................
QSTATE Sensor::final(QEvent const *e)
{
  switch (e->sig)
  {
    case Q_ENTRY_SIG:
      EndDialog(myHwnd, 0);
      return 0;
  }
  return (QSTATE)&Sensor::top;
}
//...................................................................
QSTATE Sensor::polling(QEvent const *e)
{
  switch (e->sig)
  {
    case Q_ENTRY_SIG:
      SetTimer(myHwnd, 1, 500, 0);
      return 0;

    case Q_EXIT_SIG:
      KillTimer(myHwnd, 1);
      return 0;

    case Q_INIT_SIG:
      Q_INIT(&Sensor::processing);
      return 0;

    case WM_TIMER:
      SetDlgItemInt(myHwnd, IDC_POLL, ++myPollCtr, FALSE);
      if ((myPollCtr & 0x3) == 0)
      {
        PostMessage(myHwnd, WM_COMMAND, DATA_READY, 0); // post event to self
      }
      return 0;

    case TERMINATE:
      Q_TRAN(&Sensor::final);  return 0;
  }
  if (e->sig >= Q_USER_SIG)
  {
    isHandled = FALSE;
  }
  return (QSTATE)&Sensor::top;
}
//...................................................................
QSTATE Sensor::processing(QEvent const *e)
{
  switch (e->sig)
  {
    case Q_INIT_SIG:
      Q_INIT(&Sensor::idle);
     return 0;
  }
  return (QSTATE)&Sensor::polling;
}
//...................................................................
QSTATE Sensor::idle(QEvent const *e)
{
  switch (e->sig)
  {
    case Q_ENTRY_SIG:
      SetDlgItemText(myHwnd, IDC_STATE, "idle");
      return 0;

    case DATA_READY: // handle reminder event
      Q_TRAN(&Sensor::busy);
      return 0;
  }
  return (QSTATE)&Sensor::processing;
}
//...................................................................
QSTATE Sensor::busy(QEvent const *e)
{
  switch (e->sig)
  {
    case Q_ENTRY_SIG:
      SetDlgItemText(myHwnd, IDC_STATE, "busy");
      return 0;

    case WM_TIMER:
      SetDlgItemInt(myHwnd, IDC_PROC, ++myProcCtr, FALSE);
      if ((myProcCtr & 0x1) == 0)
      {
        Q_TRAN(&Sensor::idle);
      }
      return 0;
  }
  return (QSTATE)&Sensor::processing;
}
//...................................................................
extern "C" void onAssert__(char const *file, unsigned line)
{
  char str[160];
  wsprintf(str, "Assertion failed in %s, line %d", file, line);
  MessageBox(mainHwnd, str, appName, MB_ICONEXCLAMATION | MB_OK);
  exit(-1);
}
//...................................................................
BOOL CALLBACK reminderDlg(HWND hwnd, UINT iMsg, WPARAM wParam, LPARAM lParam)
{
  QEvent e;
  e.sig = iMsg;
  switch (iMsg)
  {
    case WM_INITDIALOG:
      app.myHwnd = mainHwnd = hwnd;
      app.init();                   // take the initial transition
      return TRUE;

    case WM_COMMAND:
      switch (LOWORD(wParam))
      {
        case IDCANCEL:
          e.sig = TERMINATE;
          break;
        default:
          e.sig = LOWORD(wParam);
          break;
      }
      // intentionally fall thru

    case WM_TIMER:
      app.isHandled = TRUE;
      app.dispatch(&e);
      return app.isHandled;
  }
  return FALSE;
}
//...................................................................
int WINAPI WinMain(HINSTANCE hInst, HINSTANCE hPrevInst, PSTR cmdLine, int iCmdShow)
{
  InitCommonControls();              // load common controls library
  inst = hInst;                             // store instance handle
  DialogBox(hInst, MAKEINTRESOURCE(IDD_DIALOG), NULL, reminderDlg);
  return 0;              // exit application when the dialog returns
}
//...................................................................

Consequences

• Fix the QHM limitation on initial transitions, allowing initial transition to target substates
• Provides work-around for completion transitions
• Can break up CPU-intensive tasks (other events are given a chance)
• Note two ways to post: FIFO (at back of event queue) and LIFO (at front of event queue)
• Cost: more states to manage

Deferred Event

Intent Simplify state machines by modifying the sequencing of events Problem Reactive Systems must handle every event at any time Event may arrive at particularly inconvenient moment Nature of event may allow postponement

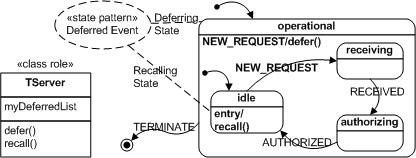

Undock Deferred Event Statechart

Solution

• Defer event, retain in separate event queue
• Handle it at more convenient time
• Effectively alters sequence of events presented to the state machine

Example: ATM

• Server Application receives many transactions
• Cannot throw away any transaction
• Defer incoming event
• Must automatically recall all deferred events as soon as possible
• Statecharts solution: special event queue for deferrals associated with every event type and active state (heavyweight)
• QP solution: re-post event to self (lightweight)

Sample Code: Windows GUI

//...................................................................
class TServer : public QHsm
{
  public:
    TServer() : QHsm((QPseudoState)initial) {}
  private:
    void initial(QEvent const *e);
    QSTATE operational(QEvent const *e);
      QSTATE idle(QEvent const *e);
      QSTATE receiving(QEvent const *e);
      QSTATE authorizing(QEvent const *e);
    QSTATE final(QEvent const *e);
    BOOL defer(QEvent const *e);            // event deferral action
    void recall();                                  // recall action
  private:
    QEvent myDeferredRequest;
    BOOL isHandled;
    HWND myHwnd;                           // the main window handle
    friend BOOL CALLBACK
      tServerDlg(HWND hwnd, UINT iEvt, WPARAM wParam, LPARAM lParam);
};
//...................................................................
enum TServerSignals
{
   TERMINATE = Q_USER_SIG
};
//-------------------------------------------------------------------
static TServer app;
static HINSTANCE inst;                               // this instance
static HWND mainHwnd;                       // the main window handle
static char appName[] = "TServer";

//...................................................................
BOOL TServer::defer(QEvent const *e) // implementation of defer action
{
   if (IsDlgButtonChecked(myHwnd, IDC_DEFERRED))         // deferred?
   {
      return FALSE;                   // cannot defer any more events
   }
   myDeferredRequest = *e;          // save the event (copy by value)
   CheckDlgButton(myHwnd, IDC_DEFERRED, BST_CHECKED);     // deferred
   return TRUE;
}
//...................................................................
void TServer::recall()           // implementation of recall action
{
  if (IsDlgButtonChecked(myHwnd, IDC_DEFERRED))       // deferred?
  {
    PostMessage(myHwnd, WM_COMMAND, myDeferredRequest.sig, 0);
    CheckDlgButton(myHwnd, IDC_DEFERRED, BST_UNCHECKED);
  }
}
// HSM definition ---------------------------------------------------
void TServer::initial(QEvent const *)
{
  SendMessage(myHwnd, WM_SETICON, (WPARAM)TRUE,
   (LPARAM)LoadIcon(inst, MAKEINTRESOURCE(IDI_QP)));
  Q_INIT(&TServer::operational);
}
//...................................................................
QSTATE TServer::final(QEvent const *e)
{
  switch (e->sig)
  {
    case Q_ENTRY_SIG:
      EndDialog(myHwnd, 0);
      return 0;
  }
  return (QSTATE)&TServer::top;
}
//...................................................................
QSTATE TServer::operational(QEvent const *e)
{
  switch (e->sig)
  {
    case Q_INIT_SIG:
      Q_INIT(&TServer::idle);
      return 0;

    case IDC_NEW:
      if (!defer(e)) // defer at composit level
      {
         Beep(1000, 20);  // if event cannot be deferred, warn the user
      }
      return 0;

    case TERMINATE:
      Q_TRAN(&TServer::final);
      return 0;
  }
  if (e->sig >= Q_USER_SIG)
  {
    isHandled = FALSE;
  }
  return (QSTATE)&TServer::top;
}
//...................................................................
QSTATE TServer::idle(QEvent const *e)
{
  switch (e->sig)
  {
    case Q_ENTRY_SIG:
      SetDlgItemText(myHwnd, IDC_STATE, "idle");
      recall(); // recall at descendant level
      return 0;

    case IDC_NEW:
      Q_TRAN(&TServer::receiving);
      return 0;
  }
  return (QSTATE)&TServer::operational;
}
//...................................................................
QSTATE TServer::receiving(QEvent const *e)
{
  switch (e->sig)
  {
    case Q_ENTRY_SIG:
      SetDlgItemText(myHwnd, IDC_STATE, "receiving");
      SetTimer(myHwnd, 1, 1000, 0);   // arrange for timeout in 1 sec
      return 0;

    case WM_TIMER:
      Q_TRAN(&TServer::authorizing);
      return 0;

    case Q_EXIT_SIG:
      KillTimer(myHwnd, 1);
      return 0;
  }
  return (QSTATE)&TServer::operational;
}
//...................................................................
QSTATE TServer::authorizing(QEvent const *e) {
  switch (e->sig)
  {
    case Q_ENTRY_SIG:
      SetDlgItemText(myHwnd, IDC_STATE, "authorizing");
      SetTimer(myHwnd, 1, 2000, 0);   // arrange for timeout in 2 sec
      return 0;

    case WM_TIMER:
      Q_TRAN(&TServer::idle);
      return 0;

    case Q_EXIT_SIG:
      KillTimer(myHwnd, 1);
      return 0;
  }
  return (QSTATE)&TServer::operational;
}
//...................................................................
extern "C" void onAssert__(char const *file, unsigned line)
{
   char str[160];
   sprintf(str, "Assertion failed in %s, line %d", file, line);
   MessageBox(mainHwnd, str, appName, MB_ICONEXCLAMATION | MB_OK);
   exit(-1);
}
//-------------------------------------------------------------------
BOOL CALLBACK tServerDlg(HWND hwnd, UINT iMsg, WPARAM wParam, LPARAM lParam)
{
   QEvent e;
   e.sig = iMsg;
   switch (iMsg) {
   case WM_INITDIALOG:
      app.myHwnd = mainHwnd = hwnd;
      app.init();                      // take the initial transition
      return TRUE;
   case WM_COMMAND:
      switch (LOWORD(wParam)) {
      case IDCANCEL:
         e.sig = TERMINATE;
         break;
      default:
          e.sig = LOWORD(wParam);
          break;
      }
      // intentionally fall thru
   case WM_TIMER:
      app.isHandled = TRUE;
      app.dispatch(&e);
      return app.isHandled;
   }
   return FALSE;
}
//...................................................................
int WINAPI WinMain(HINSTANCE hInst, HINSTANCE hPrevInst,
                   PSTR cmdLine, int iCmdShow)
{
   InitCommonControls();              // load common controls library
   inst = hInst;                             // store instance handle
   DialogBox(hInst, MAKEINTRESOURCE(IDD_DIALOG), NULL, tServerDlg);
   return 0;              // exit application when the dialog returns
}

Consequences

• Requires explicit defer and recall of deferred events
• Concrete (derived) state machines responsible for implementing defer and recall
• Multiple event types require independent queue
• Events are deferred at composit state level and recalled at descendant state
• Similar to Reminder, except:
  1. these are external events (not internally invented events)
  2. posting is to a separate deferred event queue (not the general queue)

Orthogonal Component

Intent Use state machines as independent components State machine = stand-alone system Re-use Problem Independent machine behavior best modeled by independent state machine UML Statechart Orthogonal Region is heavy and not comprised of independent (re-usable) components

Undock Orthogal Component Statechart

Solution

• Use object composition instead of orthogal regions
  - One machine (container) "has" the other as a data member (component)
• Container communicates directly with component
  - synchronous
  - call dispatch() directly
• Component communicates indirectly with container using Reminder pattern
  - asynchronous
  - post a message to container
• Container and component share data where needed

Example: Alarm Clock TimeKeeping machine - stand-alone HSM Alarm machine - stand-alone FSM AlarmClock a modified TimeKeeping machine that has an Alarm data member AlarmClock has responsibility: - for initializing Alarm - for dispatching events to Alarm

Sample Code

(see text)

Consequences

• Communication
1. Container communicates synchronously with Component
2. Component communicates asynchronously with Container
3. Data can be shared between Container and Component
• Tradeoffs
1. Sharing Container data may be necessary at times but may reduce Component reusability
2. OC pattern is not the best choice for a storage only problem due to added complexity
3. Errors could result if the Container fails to dispatch events in some cases
• Benefits
1. Orthogonal components are reusable within the application or across other applications
2. OC Pattern can be leveraged to gain optimal performance if needed Component not limited to one level (i.e. can be HSM)

Transition to History

Intent Transition out of a composite state, but remember the most recent active substate so it can be returned to at a later time Problem State transitions defined in high level composite states often deal with events that require immediate attention Event may force transition out of a composit state After handling the event, the system should return to the most recent substate of the given composite state A mechanism is needed to remember the last state

Undock Transition to History Statechart

Solution

• Store the most recently active substate of the composite state in a dedicated attribute of type QState
• Set this attribute during the exit action from the composite state
• The transition to history of the interrupting state uses the attribute as the target of the transition
• Use dynamic transition, since history is determined at runtime

Examples

• Toaster Oven / door-open
• Printer / out-of-paper
• Washing Machine / unbalanced-load

Sample Code

class ToasterOven : public QHsm
{
  public:
    ToasterOven() : QHsm((QPseudoState)initial) {}
  private:
    QState myDoorClosedHistory;
};

QSTATE ToasterOven::doorClosed(QEvent const *e)
{
  switch (e->sig)
  {
    case Q_ENTRY_SIG:
      printf("door-Closed;");
      return 0;
    case Q_EXIT_SIG:
      myDoorClosedHistory = getState();
      return 0;
   }
   return (QSTATE)&ToasterOven::top;
}

QSTATE ToasterOven::doorOpen(QEvent const *e)
{
  switch (e->sig)
  {
    case Q_ENTRY_SIG:
      printf("door-Open,lamp-On;");
      return 0;
    case Q_EXIT_SIG:
      printf("lamp-Off;");
      return 0;
    case CLOSE_SIG:
      Q_TRAN_DYN(myDoorClosedHistory);
      return 0;
  }
  return (QSTATE)&ToasterOven::top;
}

Consequences

• Requires that a separate QState pointer to member function is provided for each composite state to store the history of this state
• Requires explicitly setting the history variable in the exit action from the corresponding composite state using QHsm::getState()
• Requires the dynamic (not optimized) Q_TRAN_DYN(<history-variable>) transition macro to transition to the history of a given state
• Corresponds to the deep history, not the shallow history, pseudostate
• You can explicitly clear the history of any state by resetting the corresponding history variable
