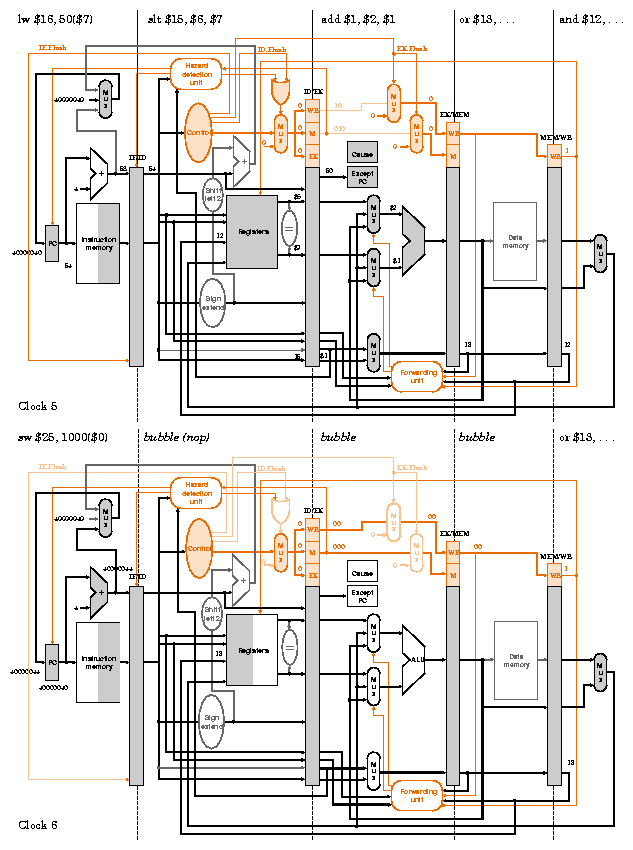

Figure 6.56: Event in the result of an exception due to arithmetic overflow in the add instruction.

Figure 6.56: Event in the result of an exception due to arithmetic overflow in the add instruction.

Chapter 6: Enhancing Performance with Pipelining - 70 of 88
