These topics are from Chapter 8 (Agreement Protocols) in *Advanced
Concepts in OS*.

- definition of the agreement problem
- solution of Lamport
*et alia*

- all sites must agree on a value, say, 0 or 1
- example: decision to commit a DB transaction
- just voting is not enough
- processors may send inconsistent votes to different sites

Assume:

*m*out of*n*processors may fail- system is fully connected, pairwise
- receiver knows sender's identity
- communications are reliable

- synchronous: all processors proceed in ``lock step''
- asynchronous: each processor proceeds at its own pace

Agreement problem is not solvable in an asynchronous system, even for single-processor failures.

- crash fault
- omission fault
- malicious (Byzantine) fault

Synchronous model allows detection of first two kinds of failures.

Byzantine failures may be due to hardware or software failures, or due to malicious attacks.

- authentication of messages
- metrics: time, message traffic, storage overhead

All non-faulty processors must agree on value(s) from a non-faulty processor

- Byzantine agreement:
- The source processor broadcasts its initial value to all other processes.
**Agreement**: All nonfaulty processors agree on the same value.**Validity**: If the source processor is nonfaulty, the the common agreed upon value by all nonfaulty processors should be the initial value of the source

- consensus:
- Every processor broadcast the initial value to all other processors.
**Agreement**: All nonfaulty processors agree on the same value.**Validity**: If the initial value of every nonfaulty processor is v, then the agreed upon common value by all nonfaulty processors must be v.

- interactive consistency:
- every processor broadcasts its initial value to all other processors.
**Agreement:**All nonfaulty processors agree on the same vector. (v_1, v_2, ..., v_n).**Validity:**If the ith processor is nonfaulty and its initial value is v_i, then the ith value to be agreed on by all nonfaulty processors must be v_i.

Byzantine agreement is the most basic one.

Algorithms to solve the other problems can be constructed from an algorithm to solve the Byzantine agreement problem, though more direct algorithms may also exist.

- Byzantine agreement is impossible if
*m*> ë(*n*-1)/3 û- e.g., ë(3-1)/3 û = 0

- Byzantine agreement is impossible
with < (
*m*+1) message exchanges

We will see some algorithms for solving the Byzantine agreement problem that fall within these bounds. However, we will also see that the algorithms are fairly complex. This should naturally lead one to think twice when designing a system, to see if there is a way to avoid creating situations that require agreement.

See the following simple example with 3 processors, from text. The arrows indicate state information made available to other nodes. In the first case, processor A initiates the agreement protocol and processor B is maliciously faulty.

C sees that B has decided for 0 and A has decided for 1. To satisfy the Byzantine agreement problem, C must decide for 1, since A is not faulty and A has decided for 1. This implies that the algorithm followed by C (and hence by any non-faulty non-initiating processor) must break ties in favor of the initiating processor.

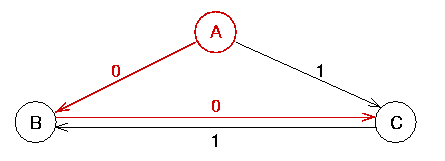

The next case is where the processor A is a traitor, and reports different values to B and C.

B thinks A has decided for 0 and C thinks A has decided for 1. If the algorithm breaks ties in favor of the initiator, C must decide for 1. However, B must follow the same algorithm, and so it must decide for 0. This means we have no agreement among the two nonfaulty processors.

Proof of the full theorem generalizes this reasoning to a larger number of processors.

- solves Byzantine agreement for
*n*³ 3*m*+1 processors in the presence of*m*faulty processors - recursively defined, as
*OM*(*m*),*m*³ 0

This is called the ``Oral Message'' algorithm, because the conditions correspond to what we would expect if messages are delivered orally, in person, by pairwise conversations between the parties involved in the consensus.

- every message that is sent is delivered exactly
- the receiver of a message knows who sent it
- the absence of a message can be detected

- every processor is a
*general* - the general who initiates the agreement protocol is the
*commander* - the value suggested by the commander is the
*order* - the other generals, to whom the commander sends the order,
are his
*lieutenants* - the faulty processors are
*traitors* - the nonfaulty processors are
*loyal*

If there are no traitors, achieving agreement is easy:

- The commander
*i*sends the proposed value*v*to every lieutenant*j*in*S*- {*i*} - Each lieutenant
*j*accepts the value*v*from*i*

*S* is the set of generals for which we want agreement.

The commander

*i*sends a value*v*directly to every lieutenant*j*Î*S*- {*i*}.For each lieutenant

*j*Î*S*- {*i*}, let*v*_{j}be the value lieutenant*j*receives from the commander*i*, or else be RETREAT of he receives no value. Lieutenant*j*initiates*OM*(*m*-1,*S*- {*i*}) (recursively) with value*v*_{j}, acting as commander.The notation

*v*_{j}here helps us to remember that*j*received the value*v*_{j}from*i*in the previous round, and*j*is asking the other generals to agree on this fact. At the end of each of these recursive executions, all every loyal lieutenants*j*Î*S*- {*i*} has agreed on a set of pairs (*k*,*v*_{k}), one for each*k*Î*S*-{*i*}.When Step 2 has been completed by all lieutenants, each lieutenant

*j*tabulates the pairs it received in Step 2 (its own pair containing the original value from its commander and the other pairs containing the values returned by its own lieutenants by the recursive invocation of*OM*(*m*,*S*-{*i*})) and agrees on the value*v*=*majority*({(*k*,*v*_{k}) |*k*Î*S*-{*i*}}) that is in the majority of those pairs, to be the result of*OM*(*m*,*S*).

One feature of this algorithm that some people have found confusing is the way in which the results of the recursive algorithms are combined. That is, the values must be retained and then combined, by taking the majority, after the entire round has completed.

Another feature that some people have found confusing is that
there must be an arbitrary rule, such as choosing the lower value,
is to break ties. Since traitors may not send messages,
there also must be a default value, such as 0, that is used for
all generals from which no pair is received. Likewise, if there
is no majority, a default value must be used for the result of
*OM*(*m*,*S*). So long as all loyal generals agree on the
tie-breaking rule and the default value, there will still be
consensus among the loyal generals.

To understand this algorithm, it helps to start with the case
that the commander *i* is loyal. In that case, each
lieutenant *j* will receive the same value *v* from *i*.
The loyal ones can simply accept the value *v* and
it will not matter what the traitors do.

However, since there is no way for a lieutenant *j* to tell
whether the commander *i* is traitor, one must assume that he
may be a traitor. To protect against the commander sending different
values to the different lieutenants, the lieutenants must hold a
ballot to reach consensus on what message the commander sent to
each one of them. The rest of the algorithm is the procedure for
that ballot.

Since the messages are transmitted "orally" (not broadcast), the lieutenants must all exchange information about what they received in the previous round, before they can hold the ballot. The ballot would still be easy if we could trust every processor to report accurately what it received. However, we must allow fo the possibility that some lieutenants are traitors, and so will report different things to different other lieutenants. That is why we need to do a Byzantine agreement on each of the messages that was sent to a lieutenant in the previous round.

When we get to the recursive invocation of *OM*(*m*-1,*S*-{*i*}),
it is not obvious that we have reduced the problem sufficiently
to satisfy the preconditions for *OM*(*m*-1,*S*-{*i*}).
There are two possibilities:

- The commander
*i*is a traitor. In this case, it is clear that the recursion should work. Only*m*- of the lieutenants are traitors. We are assuming |*S*| ³ 3*m*+1, so |*S*- {*i*} | ³ 3*m*> 3(*m*-1)+1. It follows that*OM*(*m*-1,*S*-{*i*}) can achieve Byzantine agreement on the message "*i*sent*j*the value*v*" among the loyal lieutenants in*S*-{*i*}. - Processor
*i*is a traitor. In this case, it is not so clear that the recursion should work. We have reduced the number of processors in the consensus by one, but there may remain*m*processors in*S*-{*i*}. If*m*is the number of traitors, how can we get away with using*OM*(*m*-1,...)?

The second case is dealt with by the Validity Lemma, which is
stated and proven below. This lemma guarantees that if the
commander is loyaal, *O*(*m*,*S*) can tolerate up to *k* traitors
if | *S* | ³ 2*k*+*m*. We will explain this lemma in more
detail below, using the original theorems and proofs of Lamport,
Shostak, and Pease.

- Agreement: All loyal generals agree on the same value.
- Validity: If the commander is loyal, then the common agreed upon value for all loyal lieutenants is the initial one given by the commander.

**Lemma:** For any *m* and *k*, *OM*(*m*,*S*) satisfies
the Validity Condition if there are more than 2*k*+*m* processors
and at most *k* of them are traitors.

**Proof:**

The proof is by induction on *m*. As a basis for the
induction, we consider the case of *OM*(0). The Validity
Condition only specifies what must happen if the commander is
loyal. It is easy to see that if the commander is loyal
*OM*(0) satisfies the Validity Condition, since all the
processes get the same value *v* and agree upon that. We
therefore can assume the theorem is true for *OM*(*m*-1) and prove
that is tis true for *OM*(*m*), *m* > 0.

For the induction step, we have *m* ³ 1. In Step 1, the
loyal commander *i* sends a value *v* to all the other
processors. At Step 2, each loyal lieutenant *j* applies *O*(*M*-1,*S*-{*i*}). Since we are assuming that | *S* | > 2*k* + *m*, we
have | *S* -{*i*} | > 2*k* + (*m*-1), so we can apply the
induction hypothesis to conclude that every loyal lieutenant
agrees on the value *v*_{j}=*v* for each invocation of *OM*(*m*-1,*S*-{*i*}) by a loyal commander *j*. Since there are
atmost *k* traitors, and | *S* -{*i*} | > 2*k* + (*m*-1) > 2*k*,
a majority of the lieutenants in *S* -{*i*} are loyal.
Hence, when each lieutenant gets to Step 3 it will find a majority of
the other lieutenants support the value *v*, and so it will agree
to the value *v*. This confirms the Validity Condition.

**Theorem:** For any *m*, *OM*(*m*,*S*) satisfies the
Validity and Agreement Conditions if there are more than 3*m*
generals and at most *m* of them are traitors.

**Proof:**

The proof is by induction on *m*, similar to that of the
Validity Lemma. As a basis for the induction, we consider the
case of *OM*(0). If there are no traitors, it is easy
to see that *OM*(0) satsfies the Validity and Agreement
Conditions. We therefore can assume the theorem is true for
*OM*(*m*-1) and prove that it is true for *OM*(*m*), *m* > 0.

For the induction step, have *m* ³ 1. We consider
two cases, depending on whether the commander is a traitor.

- Suppose the commander
*i*is loyal. By taking*k*equal to*m*in the Validity Lemma, we see that*OM*(*m*) satisfies the Validity Condition. Moreover, since we are assuming the commander is loyal the Agreement condition is also satisfied. - Suppose the commander is a traitor. At most
*m*-1 of the lieutenants can be traitors. Since there are more than 3*m*processes, there are more than 3*m*-1 > 3(*m*-1) processes in*S*-{*i*}. We may therefore apply the induction hypothesis to conclude that*OM*(*m*-1) satisfies the Agreement and Validity Conditions. Hence, any two loyal lieutenants get the same vector of values*v*_{1},¼,*v*_{n-1}, and therefore obtain the same value*majority*(*v*_{1},¼,*v*_{n-1}) in Step 3, proving the Agreement Condition.

Do an example, for 4 processors, interactively

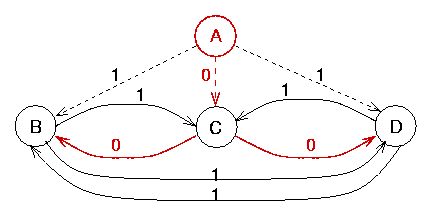

Round 1: processor A executes OM(1), where processor C (in red) is faulty.

Round 2: processors B, C, and D execute OM(0). Dashed lines indicate messages sent during the previous round.

Round 1: processor A executes OM(1), where processor A is faulty.

Round 2: processors B, C, and D execute OM(0).

*T*(0,*n*) =*n*-1*T*(*m*,*n*) = (*n*-1)*T*(*m*-1,*n*-1), for*m*> 0*T*(*m*,*n*) = (*n*-1)(*n*-2)(*n*-3)¼(*n*-*m*-1) Î*O*(*n*^{m})
