Programming Assignment #1
Due: Tues, Jan 30, (by end of day -- 11:59 PM)
Objective: Upon completing this assignment,
you should be able to implement a simple class, as well as gain a better
understanding of the building and use of classes and objects.
Task:
You are to write a class called House, using filenames
house.h and house.cpp, that will
allow creation and handling of House objects, as described below.
House Dimensions
Each house object should be pictured as follows:
- The base of the house is a square with a given side length.
Minimum length is 3, maximum is 37. This will be referred to as
the base size of the house.
- The roof of the house is an equilateral triangle
- Recall that an equilateral triangle is one that has all three
sides of equal length
- The roof will always overhang the base by one length unit on each
side, so the length of the triangle's side will be 2 more than the
length of the square's side
- Any calculations for the object are based on the dimensions
described above. The ascii drawing we will do is an approximation of
this

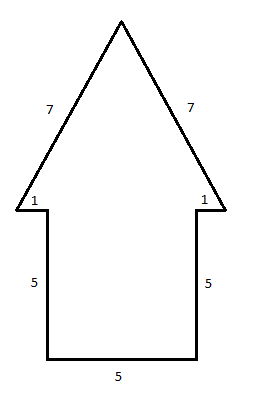

- Example house image, with base size 5:
Class Details
- The single constructor for the House class should have 3
parameters: an integer size (required), which is the base size of the
house; a border character (optional, with a default of 'X' --
uppercase);
and a fill character (optional, with a default of '*'). If the
size provided is less than 3, set the size to 3. If the size provided is
greater than 37, set the size to 37. The class will need to provide
internal storage for any member data that must be kept track of.
- There should be member functions GetSize,
Perimeter, and Area, which will return
the house's base size, the perimeter of the house, and the area of the
house, respectively. The first 2 should return integer results. The
Area function should return its result as a double. Note that
for Area, you'll need to compute the areas of the
triangle roof and the square base and combine them.
- There should be member functions Grow and
Shrink, which will increase or decrease (respectively)
the base size of the house by 1, unless this would cause the size to go
out of bounds (out of the 3-37 range); in the latter case, Grow
and Shrink should make no change to the size.
- There should be member functions SetBorder and
SetFill, which each allow a new border or fill character
(respectively) to be passed in as a parameter. There is a chart of ASCII
characters in an appendix of the textbook. The characters that should be
allowed for the border or fill characters are any characters from the
'!' (ascii 33) up through the '~' (ascii 126). If an
attempt is made to set the border or fill characters to anything outisde
the allowable range, the function should set the border or fill back to
its original default (the ones listed for the constructor -- the border
default is 'X' and the fill default is '*').
- There should be a member function called Draw that
will display a picture of the house on the screen. You may assume
that
the cursor is already at the beginning of a line when the function begins,
and you should make sure that you leave the cursor on the line following
the picture afterwards (i.e. print a newline after the last line of the
house). Use the border character to draw the border of the house,
and use the fill character to draw the internal characters. Separate the
characters on a line in the picture by a single space to make the house
look more proportional (to approximate the look of an equilateral
triangle and a square). You may not use formatting functions like
setw to draw the figure. This must be handled with loops.
(You will only print out the newline, spaces, the border character, and
maybe the fill character on any given line). Note that the bottom of
the roof and the top of the base will be on a shared line -- the
overhang area will be border characters, but everything internal will be
fills. See the sample run linked below to see exactly how this should
look.
- Provide a member function called Summary that displays
all information about a house: its base size, perimeter, area, and a
picture of what it looks like. When displaying the area (decimal data),
always show exactly 2 decimal places. Your output should be in the exact same
format as mine (seen in the linked sample run below)
- I am providing a sample driver program (called driver.cpp)
that uses objects of type House and illustrates sample usage of the
member functions. You can get the driver.cpp file
at this link, or you can copy it from your CS account with the unix
cp command: ( cp ~myers/c++prog/hw1/driver.cpp . ).
I have also provided the output from the sample execution of my driver.cpp program at
this link. Your class declaration and definition files must work
with my main program, as-is (do not change my program to make your code
work!). You are encouraged to write your own driver routines to further
test the functionality of your class, as well. Most questions about the
required behavior of the class can be determined by carefully examining my
driver program and the sample execution. Keep in mind, this is just
a sample. Your class must meet the requirements listed
above in the specification -- not just satisfy this driver
program. (For instance, I haven't tested every illegal fill
character in this driver program -- I've just shown a sample). Your class
will be tested with a larger set of calls than this driver program
represents.
- General Requirements
-
No global variables, other than constants!
-
All member data of your class must be private
-
Use the const qualifier on member functions wherever it is
appropriate.
-
You will need to use the <iostream> library for
output. You may use the <iomanip> library for
formatting your decimal output to two places, if you wish to use
the parameterized stream manipulators, but you may
not use setw() or other output formatting functions
for drawing the actual figure. You may use the <cmath>
library
- Do not use langauge or library features that are C++11-only
-
When you write source code, it should be readable and well-documented.
-
Your house.h file should contain the class declaration
only. The house.cpp file should contain the member
function definitions.
Submitting:
Program submissions should be done through the submission web page,
linked from the main course web site.
You will need your submission
password -- these have been uploaded to your Grade lookup in the Canvas
page under "Submission Credentials Lookup". If you have trouble
accessing this, see me or your recitation instructor ASAP (or e-mail, if
you can't come see me) to obtain your password. Do not send
program submissions through e-mail -- e-mail attachments will not
be accepted as valid submissions.
General Advice - e-mail a copy of your finished homework
files to your own FSU account. This e-mail will have a time stamp that
shows when they were sent (i.e. before the due date would be the best
idea) , and they will also serve as a backup. It's not a bad idea to
keep a copy on your CS account (as well as on a personal computer) --
backing up your work is a GOOD thing!
For HW #1, submit the following files
house.h
house.cpp
Make sure your filenames are these exact names, and do not submit the
driver.cpp file.
