Processes and Daemons

Assignment

Read Chapters 4 and 29 in LAH.

What Unix/Linux system administrators see — ps

[user@localhost]$ cat /etc/redhat-release
Fedora release 11 (Leonidas)
[user@localhost]$ ps -elf  # Sys V syntax ; Berkeley is more like ps alxwwww
F S UID        PID  PPID  C PRI  NI ADDR SZ WCHAN  STIME TTY          TIME CMD
4 S root         1     0  0  80   0 -  1020 poll_s Aug25 ?        00:00:00 /sbin/init
1 S root        29     2  0  80   0 -     0 pdflus Aug25 ?        00:00:00 [pdflush]
1 S root        31     2  0  75  -5 -     0 kswapd Aug25 ?        00:00:06 [kswapd0]
0 S root      1260     1  0  80   0 -  2783 wait   Aug25 ?        00:00:00 /bin/sh /command/svscanboot
0 S root      1283  1260  0  80   0 -   985 hrtime Aug25 ?        00:00:01 svscan /service
0 S root      1289  1283  0  80   0 -   942 poll_s Aug25 ?        00:00:00 supervise dnscache
0 S root      1290  1283  0  80   0 -   942 poll_s Aug25 ?        00:00:00 supervise log
4 S 501       1291  1289  0  80   0 -  1326 poll_s Aug25 ?        00:00:01 /usr/local/bin/dnscache
4 S Gdnslog   1292  1290  0  80   0 -   978 pipe_w Aug25 ?        00:00:00 multilog t ./main
4 S root      1659     1  0  80   0 - 42145 epoll_ Aug25 ?        00:00:00 cupsd -C /etc/cups/cupsd.conf
5 S ntp       1897     1  0  80   0 -  7985 poll_s Aug25 ?        00:00:00 ntpd -u ntp:ntp -p /var/run/ntpd.pid -g
5 S root      1954     1  0  80   0 - 19398 poll_s Aug25 ?        00:00:00 sendmail: accepting connections
1 S smmsp     1962     1  0  80   0 - 15739 pause  Aug25 ?        00:00:00 sendmail: Queue runner@01:00:00 for /var/spool/clientmqueue
1 S root      1974     1  0  80   0 - 25073 hrtime Aug25 ?        00:00:00 crond

What Unix/Linux system administrators see -- top

[root@localhost root]# top -b -n1   # run in batch mode for one iteration
 08:17:41  up 1 day, 18:12,  2 users,  load average: 9.69, 9.14, 8.89
115 processes: 114 sleeping, 1 running, 0 zombie, 0 stopped
CPU states:  cpu    user    nice  system    irq  softirq  iowait    idle
           total    0.0%    0.0%    0.9%   0.0%     0.9%    0.0%   98.0%
Mem:   510344k av,  392504k used,  117840k free,       0k shrd,   17208k buff
                    240368k actv,   55488k in_d,    4760k in_c
Swap:  522104k av,   90392k used,  431712k free                   72852k cached

  PID USER     PRI  NI  SIZE  RSS SHARE STAT %CPU %MEM   TIME CPU COMMAND
 1090 root      20   0  1088 1088   832 R     0.9  0.2   0:00   0 top
    1 root      15   0   492  456   432 S     0.0  0.0   0:08   0 init
    3 root      15   0     0    0     0 SW    0.0  0.0   0:00   0 keventd

What Unix/Linux system administrators see - lsof

[root@localhost root]# lsof       # heavily redacted to fit on page
COMMAND     PID    USER   NODE NAME
sendmail  20824    root 159526 /lib/libcrypt-2.3.2.so
sendmail  20824    root 159568 /lib/libcrypto.so.0.9.7a
sendmail  20824    root 319023 /usr/lib/libldap.so.2.0.17
sendmail  20824    root  32286 /usr/lib/sasl/libcrammd5.so.1.0.19
sendmail  20824    root  32104 /usr/kerberos/lib/libk5crypto.so.3.0
sendmail  20824    root  32095 /lib/tls/libdb-4.2.so
sendmail  20824    root 318943 /usr/lib/libz.so.1.1.4
sendmail  20824    root  65611 /dev/null
sendmail  20824    root    TCP anothermachine.com:smtp->10.1.1.20:
sendmail  20824    root  65611 /dev/null
sendmail  20824    root  16220 socket
sendmail  20824    root    TCP anothermachine.com:smtp->10.1.1.20:
sendmail  20824    root    TCP localhost.localdomain:48512->localh
sendmail  20824    root    TCP anothermachine.com:smtp->10.1.1.20:

Processes and Daemons : fork and clone

Starting a Unix/Linux process

Some Typical Assembly Code

        .file   "syslog.c"        ; the source file name for this code
        .data                     ; a data section
        .align  4                 ; put PC on 4 (or 16) byte alignment
        .type   LogFile,@object   ; create a reference of type object
        .size   LogFile,4         ; and give it 4 bytes in size
LogFile:                          ; address for object
        .long   -1                ; initialize to a value of -1
        .align  4                 ; align . to 4 (16) byte
        .type   LogStat,@object   ; a new object reference is created
        .size   LogStat,4         ; give it 4 bytes also
LogStat:                          ; here's its address in memory
        .long   0                 ; and initialized it to a value zero
        .section     .rodata      ; here's a ``read-only'' section
.LC0:                             ; local label for a string
        .string "syslog"          ; initialized to "syslog"
       [ ... ]
        .text                     ; now we have some executable code
.globl syslog                     ; and it is a global symbol for
        .type   syslog,@function  ; a function syslog()
syslog:
        pushl   %ebp              ; and away we go...
        movl    %esp, %ebp
        subl    $8, %esp

Daemon processes

When we refer to a daemon process, we are referring to a process with these characteristics:

BSD-ish: Kernel and user daemons: swapper

BSD: Kernel and user daemons: pagedaemon

Kernel and user daemons: init

init (pid 1) daemon: The first ``user'' process started by the kernel; its userid is 0. All other ``normal'' processes are descendants of init. Depending on the boot parameters init, you might see something along these lines:

There is a lot of flux in this area; we are seeing, for instance, in Fedora 11-13 replacement of the old SysV init with upstart, but now Fedora 14 is apparently changing to systemd; hopefully, whatever the engine, we can get better dependency resolution than we have had previously and faster boot times. (Take a look at /etc/event.d on Fedora 11-13 for instance.)

Kernel and user daemons: update (aka bdflush/kupdate and fsflush)

Comments in the code: what kernel comments say about dirty buffers and pages

/*
 * The relationship between dirty buffers and dirty pages:
 *
 * Whenever a page has any dirty buffers, the page's dirty bit is set, and
 * the page is tagged dirty in its radix tree.
 *
 * At all times, the dirtiness of the buffers represents the dirtiness of
 * subsections of the page.  If the page has buffers, the page dirty bit is
 * merely a hint about the true dirty state.
 *
 * When a page is set dirty in its entirety, all its buffers are marked dirty
 * (if the page has buffers).
 *
 * When a buffer is marked dirty, its page is dirtied, but the page's other
 * buffers are not.
 *
 * Also.  When blockdev buffers are explicitly read with bread(), they
 * individually become uptodate.  But their backing page remains not
 * uptodate - even if all of its buffers are uptodate.  A subsequent
 * block_read_full_page() against that page will discover all the uptodate
 * buffers, will set the page uptodate and will perform no I/O.
 */

(from fs/buffer.c in kernel 2.6.29)

Kernel and user daemons: inetd and xinetd

Amusingly enough, this very same line of reasoning is being revived by systemd; see this blog posting by its author. (note that daemontools also has used a related idea since 2001, but more for monitoring purposes.)

Kernel and user daemons: inetd and xinetd

Kernel and user daemons: inetd and xinetd

The configuration file structure for xinetd is also different: /etc/xinetd.conf is used to modify general behavior of the daemon and the directory /etc/xinetd.d contains separate files per service. Your CentOS machines use xinetd instead of inetd.

Kernel and user daemons: inetd and xinetd

When installing new software packages you may have to modify /etc/inetd.conf, /etc/xinetd.d/ files, and/or /etc/services. A hangup signal (kill -HUP SOMEPID) will get the inetd/xinetd to re-read its config file. Or you might be able to use a startup script, such as ``/etc/init.d/inetd restart'') or ``service inetd restart''.

Kernel and user daemons: portmap and rpcbind

portmap/rpcbind : portmap (rpcbind on OpenSolaris and BSD) maps Sun Remote Procedure Call (RPC) services to ports (/etc/rpc). Typically, /etc/rpc looks something like:

[root@vm5 etc]# more /etc/rpc
#ident  ``@(#)rpc        1.11    95/07/14 SMI''   /* SVr4.0
#
#       rpc
#
portmapper      100000  portmap sunrpc rpcbind
rstatd          100001  rstat rup perfmeter rstat_svc
rusersd         100002  rusers
nfs             100003  nfsprog
ypserv          100004  ypprog
mountd          100005  mount showmount
ypbind          100007
walld           100008  rwall shutdown
yppasswdd       100009  yppasswd

Kernel and user daemons: portmap/rpcbind

Kernel and user daemons: syslogd

syslogd : syslogd is a daemon whose function is to handle logging requests from

Note that syslog is generally being replace rsyslog.

Kernel and user daemons: syslogd

A process can make a logging request to the syslogd by using the function syslog(3). syslogd determines what to do with logging requests according to the configuration file /etc/syslog.conf

/etc/syslog.conf generally looks something like:

*.info;mail.none;news.none;authpriv.none;cron.none  /var/log/messages
authpriv.*                                          /var/log/secure
mail.*                                              /var/log/maillog
cron.*                                              /var/log/cron
*.emerg                                             *
uucp,news.crit                                      /var/log/spooler
local7.*                                            /var/log/boot.log

Kernel and user daemons: syslogd

Viewing processes on Windows

Viewing processes on Windows

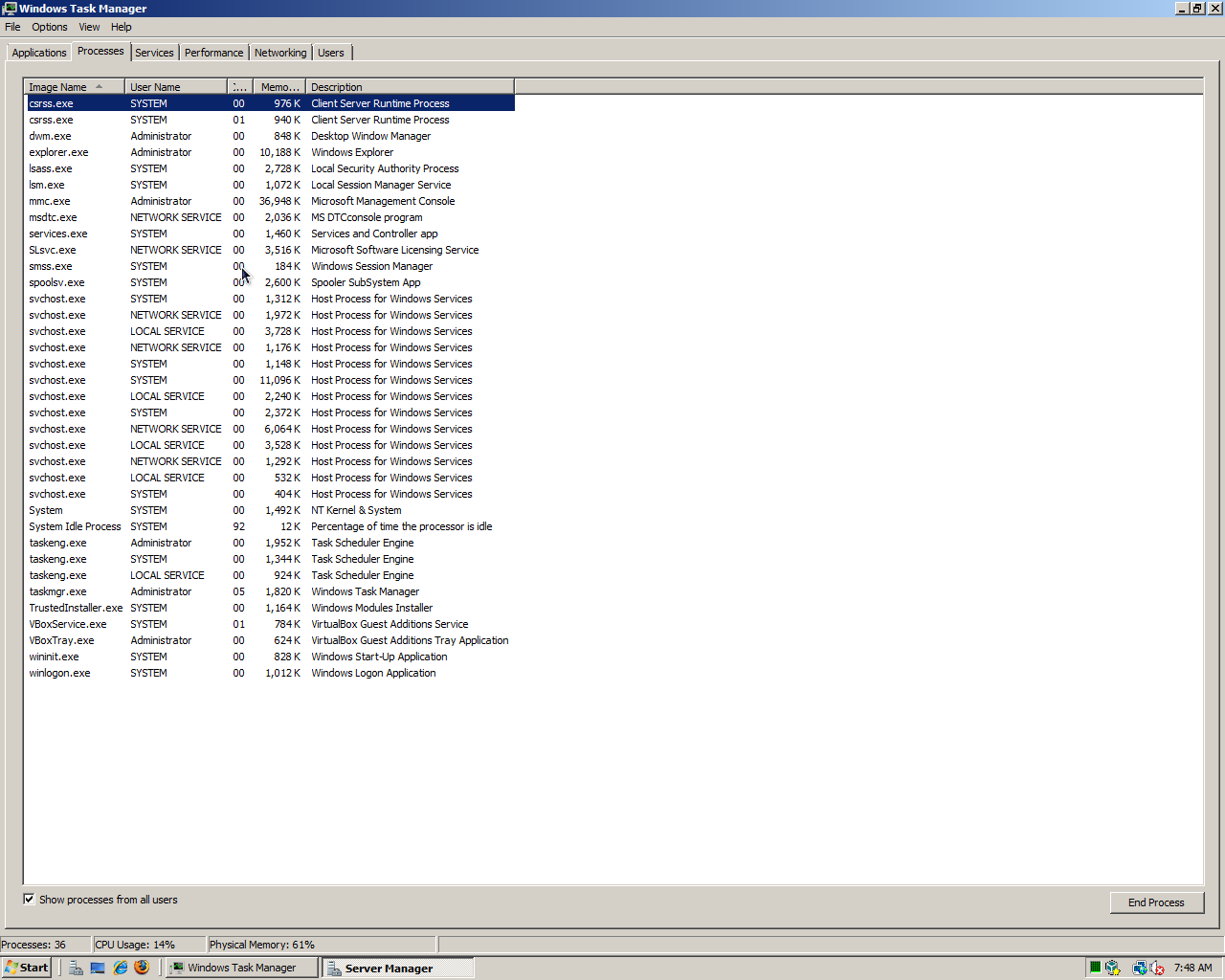

Viewing processes with Task Manager
You can see the processes running under Windows via the Windows Task Manager — Press CTRL-ALT-DEL, select Task Manager.

Viewing applications on Windows

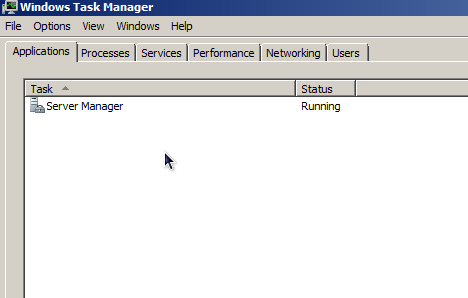

Viewing applications with Task Manager
You can see "applications" running under Windows via the Windows Task Manager — Press CTRL-ALT-DEL, select Task Manager.

Viewing network activity on Windows

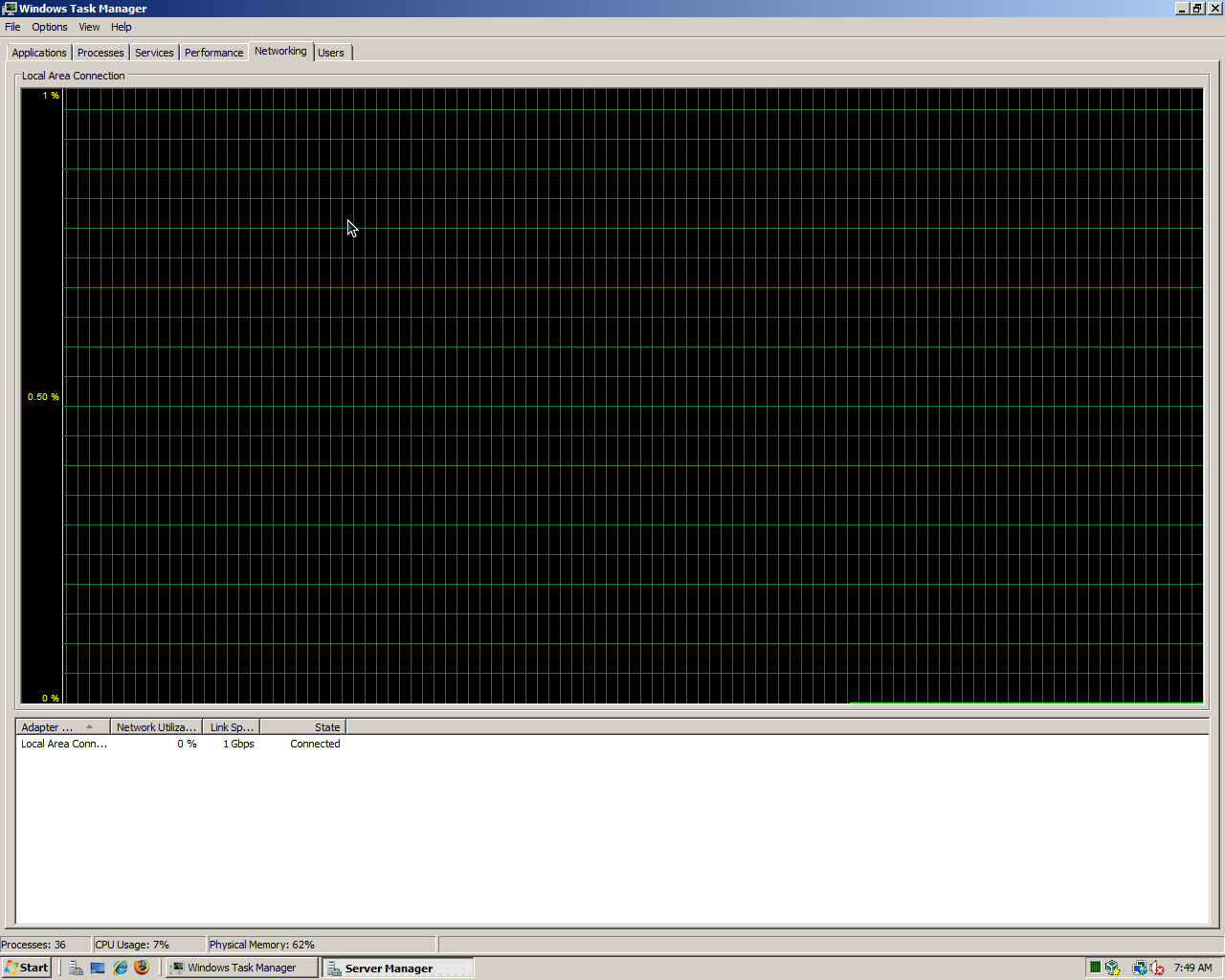

Viewing network activity with Task Manager
You can see network activity via the Windows Task Manager — Press CTRL-ALT-DEL, select Task Manager.

Viewing performance on Windows

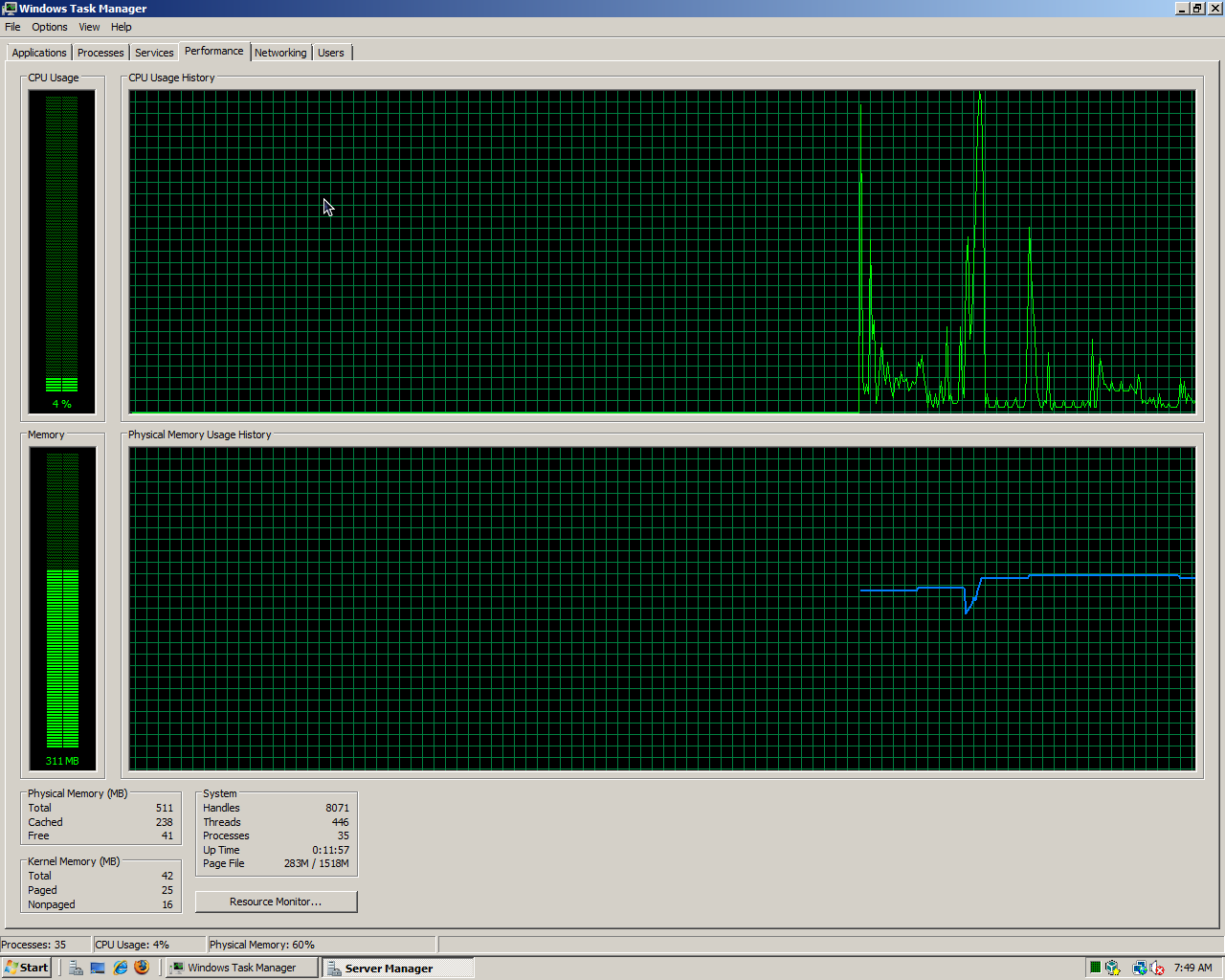

Viewing performance with Task Manager
You can see performance via the Windows Task Manager — Press CTRL-ALT-DEL, select Task Manager.

Viewing users on Windows

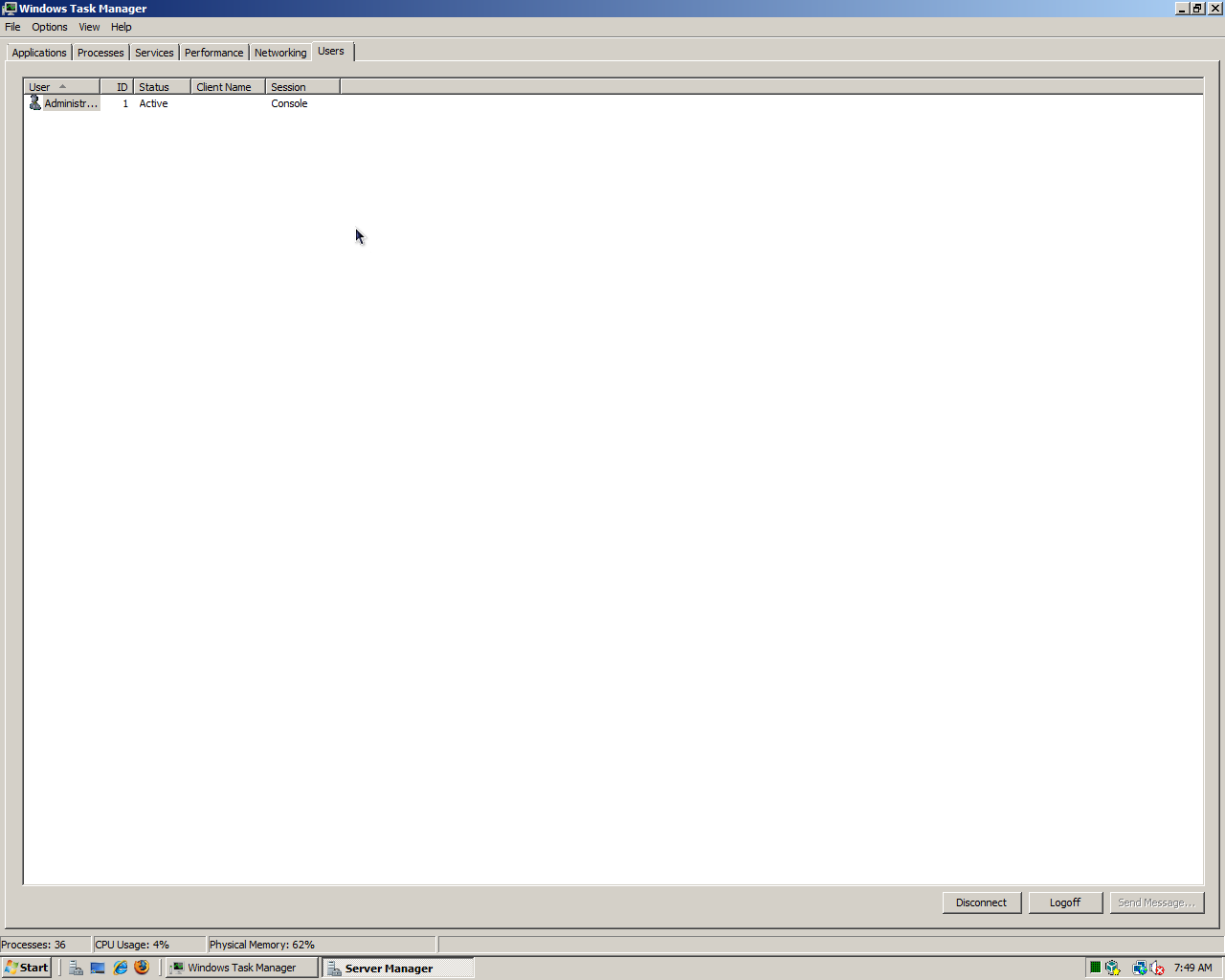

Viewing users with Task Manager
You can see useres via the Windows Task Manager — Press CTRL-ALT-DEL, select Task Manager.

Task Manager Tidbits

A nice feature of the Processes display is the ability to sort on any column by clicking on the column header (the sort toggles from ascending/descending).

Whew!

Thus ends our initial summary of daemons!
